Industrial robots have traditionally competed on precision, speed and repeatability. But as the rated payload of a single robot exceeds five tons, a new set of technical challenges emerges: how to handle and process large industrial components reliably and consistently.

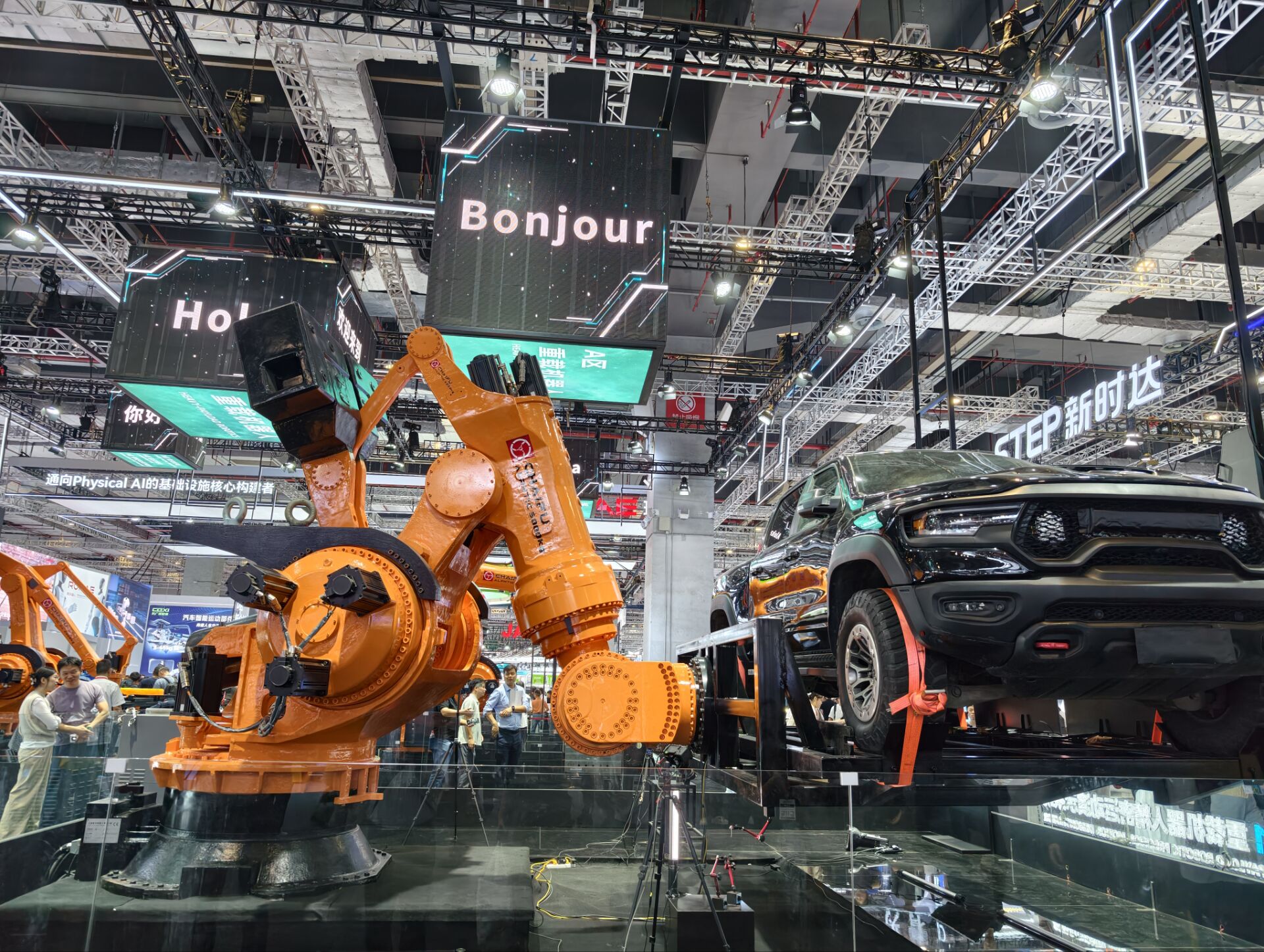

The 26th China International Industry Fair (CIIF) opened in Shanghai on Monday. Among the exhibits was the CR5000-3700 heavy-duty industrial robot from Shanghai Chaifu Robotics. According to the company, the robot has a rated payload of 5,000.36 kilograms, surpassing the previous 2,300-kilogram record held by FANUC. A live demonstration also showed the robot lifting an entire vehicle.
Beyond the eye-catching demonstration, however, the more important question is whether this level of payload capacity can be translated into practical industrial applications.
A 5-Ton payload is only the starting point
The CR5000-3700 has a reach of 3,700 millimeters and is designed for applications such as nuclear power, rail transit, large-scale equipment manufacturing and the handling of heavy components for the new energy sector. In these industries, moving and positioning large workpieces often requires lifting equipment, specialized fixtures and manual coordination, making automation challenging.
Heavy-duty robots could automate some handling, positioning and assembly tasks, which would reduce the need for workers to perform hazardous operations directly. However, higher payloads also place greater demands on mechanical structures, joint torque, motion control and safety.
A general manager of mechanical design at Chaifu Robotics, said that the five-ton payload was not intended as a one-time demonstration, but as a capability designed for continuous operation on production lines.
This distinction is important when evaluating heavy-duty robots. In addition to rated payload, long-term operating stability, positioning accuracy, productivity and maintenance costs all affect whether a robot can be deployed in real-world production.
Core components: heavy-duty robotics requires more than mechanical strength
According to Chaifu, the CR5000-3700 features several design elements, including a self-developed large RV (Rotary Vector) reducer, a three-motor drive and follow-up mechanism for a single axis, and a cast-steel body. These technologies are intended to meet the demands of heavy-duty operations in transmission, drive performance and structural rigidity.
RV reducers are key components in industrial robot joints. They reduce rotational speed and transmit torque, affecting a robot’s motion accuracy, load capacity and long-term performance. Developing and manufacturing large reducers for heavy-duty robots requires considerable expertise in materials, structural design and precision machining.
Chaifu also says it independently develops and manufactures three core components: RV reducers, servo motors and controllers. This could give the company greater control over product design and system integration, while providing more flexibility for future upgrades and supply chain management.
However, in-house development and manufacturing do not automatically translate into an overall technological advantage. Component performance, mass-production capabilities, long-term reliability and total cost still need to be validated in practical applications. For Chinese robotics manufacturers, turning technical capabilities into reliable, cost-competitive products remains a key challenge.
From seven kilograms to 6,000 kilograms: expanding the role of control systems
Chaifu also showcased its independently developed robot control system. According to the company, its product portfolio ranges from 7-kilogram desktop robots to heavy-duty industrial robots capable of handling payloads of up to 6,000 kilograms. It supports EtherCAT real-time communication, PLC logic control, laser seam tracking, arc tracking and multi-layer, multi-pass welding.
This reflects a broader trend in industrial robotics: competition is expanding beyond individual machine performance to encompass control systems and process integration. Once deployed on a production line, robots must work in coordination with sensors, manufacturing equipment and safety systems to perform specific tasks.
A relatively unified control platform across different payload classes could reduce duplicated development and maintenance work. The actual benefits, however, depend on compatibility across models, commissioning efficiency and integration with production lines.
From technical capability to practical use
As Chinese industrial robot manufacturers move toward higher payloads and more complex operating conditions, heavy manufacturing is becoming an important area to watch. The CR5000-3700 offers one example of how domestic manufacturers are approaching heavy-duty robotics, but its practical value cannot be judged by payload records alone.
For industrial users, the key considerations are whether the equipment can operate reliably over extended periods, meet process accuracy requirements, reduce exposure to hazardous manual work and deliver an acceptable return on investment.
A five-ton payload is a notable technical specification, but it is not the end of the competition. The robot’s performance in real production environments, customer adoption and ability to scale deployment will help determine its commercial value and the competitiveness of Chinese industrial robots in advanced manufacturing.
